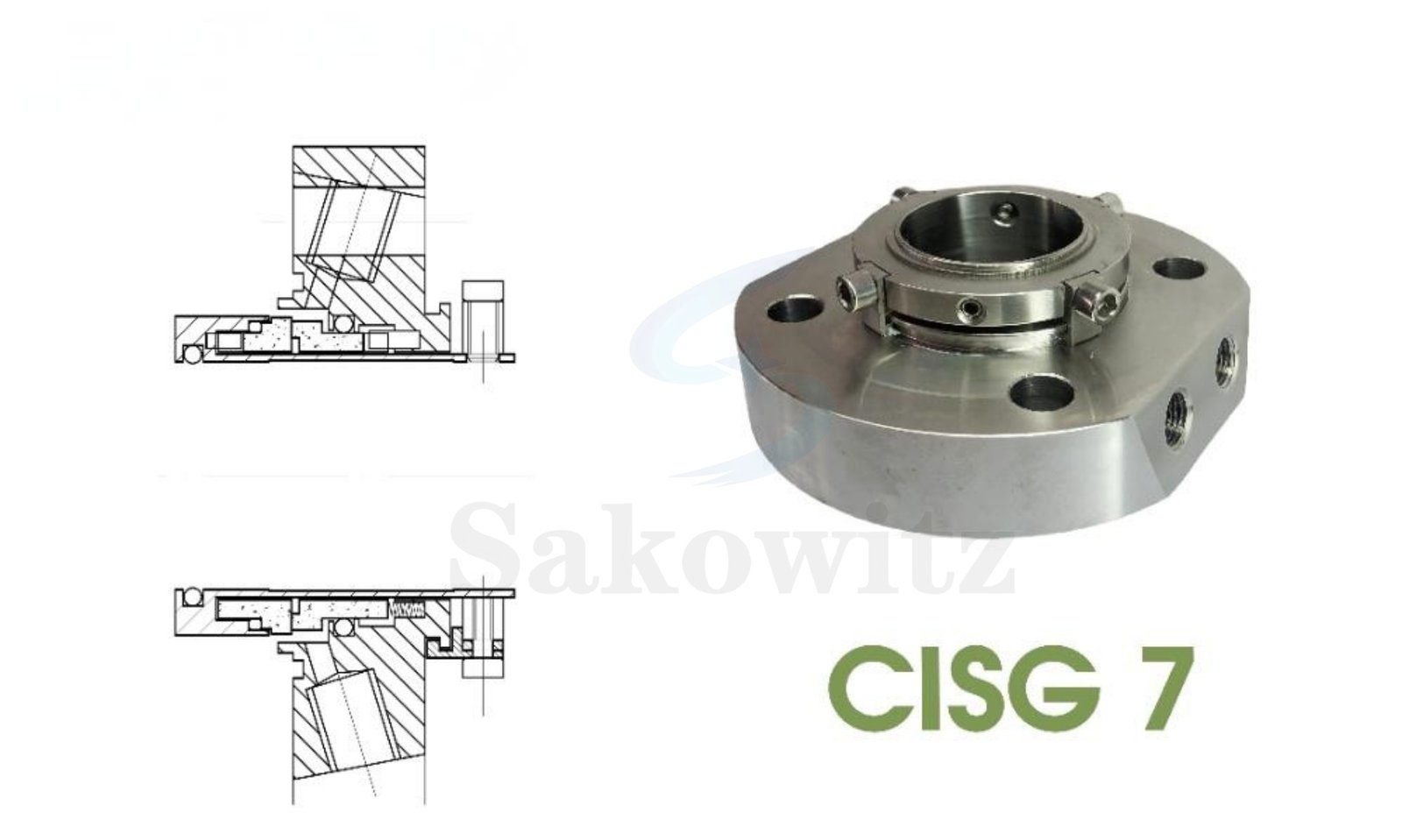

CISG 7 Mechanical Seal – Customized for ZhenHua pumps

Single end, multiple springs, balanced type, arbitrary rotation direction, still structure square pin transmission.

Standards

GJB9001C, ISO9001, CE-MD, EN ISO12100

Scope of Application

Customized model

Inner Diameter

45 mm

Materials

Rotary Ring Face: SiC/TC
Stationary Ring Face: SiC/TC
Elastomers: NBR/EPDM/Viton
Springs: SS304/SS316
Metal Parts: SS304/SS316

Operation Parameters

Pressure:≤ 2.3.0Pa
Temperature: – 20~200℃
Linear Speed:≤ 3000r/m

Axial movement:±1.0mm

Mediums:

oil, water, and other weak corrosive medium
