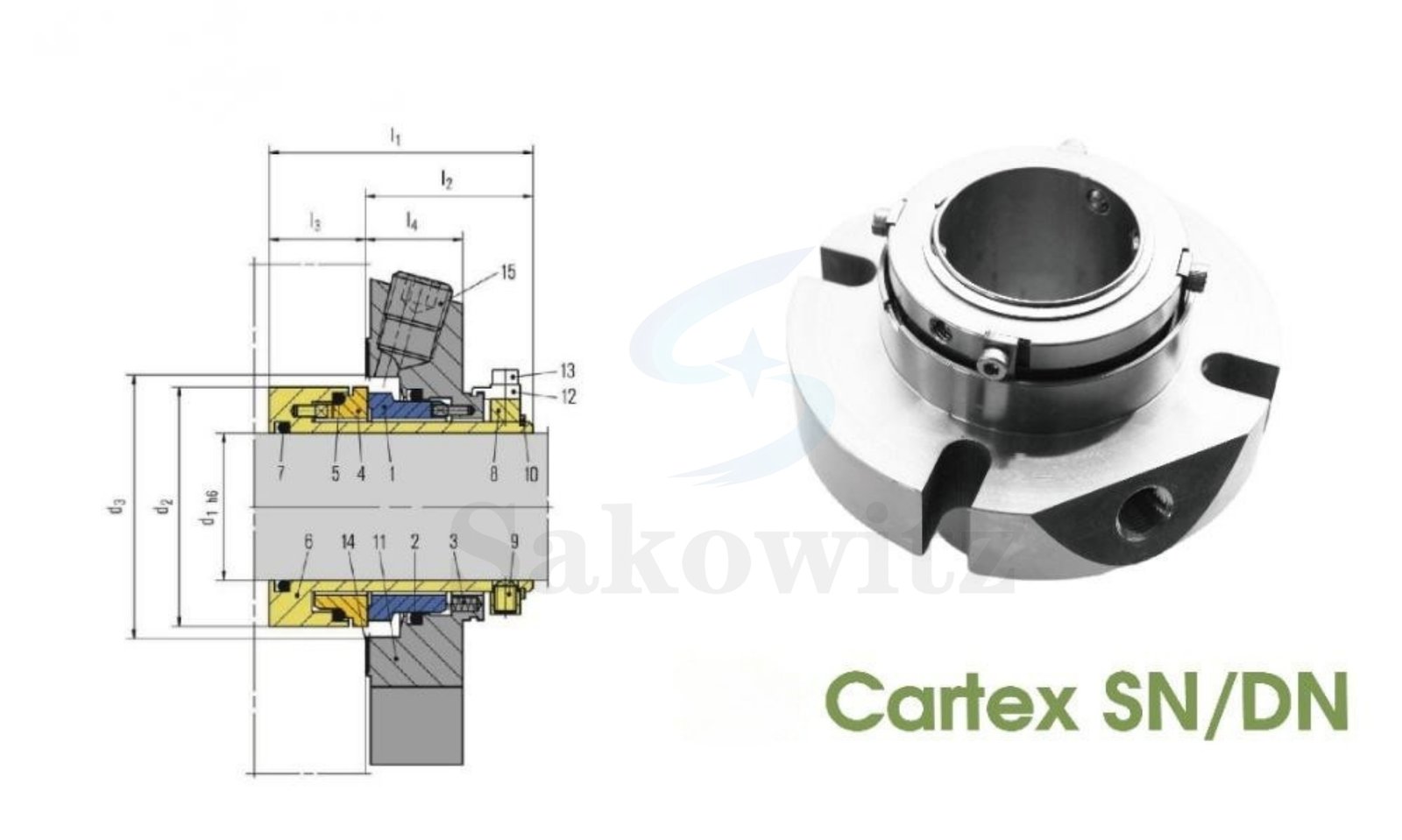

Cartex SN/DN Mechanical Seal – For paper pumps

Single end (SN) and double end (DN), multiple springs,balanced (SN) and double balanced (DN), independent direction of rotation,still type cartridge seals.

Standards

GJB9001C, ISO9001, CE-MD, EN ISO12100

Scope of Application

Widely used in water treatment, power piants, metallurgy, food processing, pharmacy, chemical engineering, fertilizer and paper making.

Inner Diameter

25 mm to 110 mm

Materials

Rotary Ring Face: SiC/TC
Stationary Ring Face: Carbon/SiC/TC
Elastomers: NBR/EPDM/Viton/FFKM
Springs: SS304/SS316
Metal Parts: SS304/SS316

Operation Parameters

Pressure:≤ 2.5MPa
Temperature: – 40~180℃
Linear Speed:≤ 15m/s

Mediums:

oil, water, acid, alkali, salt, solvents and paper pulp.
