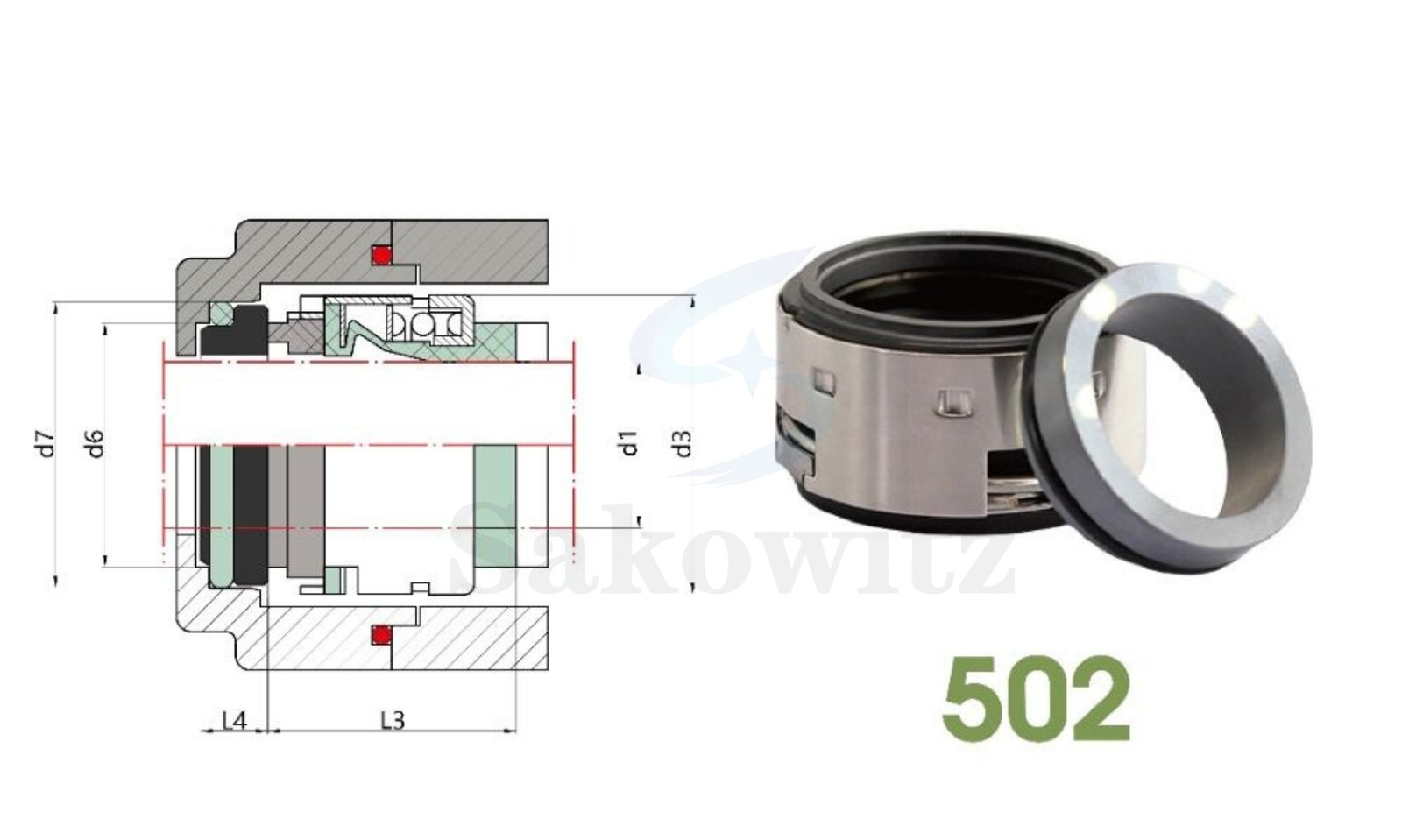

Single end face, non-equilibrium type, arbitrary rotation direction. Due to the use of rubber bellows, the structure is simple and compact, and it can also compensate for radial and axial runout of the shaft.
GJB9001C, ISO9001, CE-MD, EN ISO12100
oil industry, chemical engineering. chemical fiber,food processing, phamarcy, paper pulp and environmental protection industry.
14 mm to 100 mm
Rotary Ring Face: Carbon/SiC/TC
Stationary Ring Face: SiC/TC
Elastomers: Viton/PTFE
Springs: SS304/SS316
Metal Parts: SS304/SS316
Pressure:≤ 2.8 Pa
Temperature:-40~200℃
Linear Speed:≤ 13m/s
used for oil,water organic solutions and other weak corrosive solutions.
