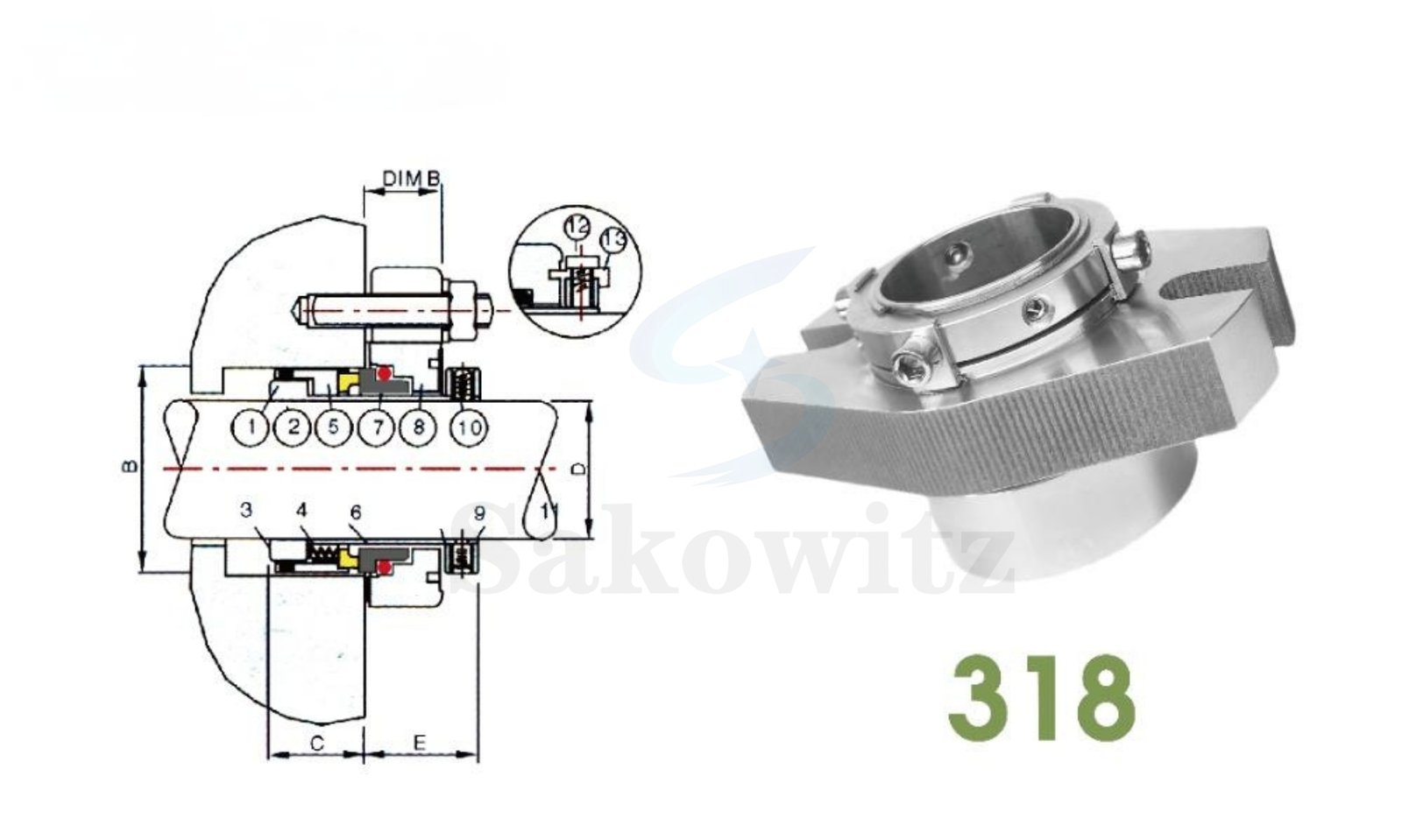

318 Mechanical Seal – For sewage pumps, replaces packing

Single end face, multiple springs, balanced type, with any rotation, supported by a shaft sleeve on the shaft axis rotation.

Standards

AP1610

Scope of Application

Widely used in industries such as water treatment, power generation in power plants, metal processing, pharmaceuticals, pesticides, and food processing.

Inner Diameter

25 mm to 160 mm

Materials

Rotary Ring Face: Carbon/SiC/TC
Stationary Ring Face: SiC/TC
Elastomers: EPDM/Viton/Aflas/FFKM
Springs: SS304/SS316
Metal Parts: SS304/SS316

Operation Parameters

Pressure:≤ 2~2.4MPa
Temperature: – 40~200℃
Linear Speed:≤ 20m/s

Mediums:

oil, water, acid, alkali, salt, solvents, pulp, and other corrosive media.
