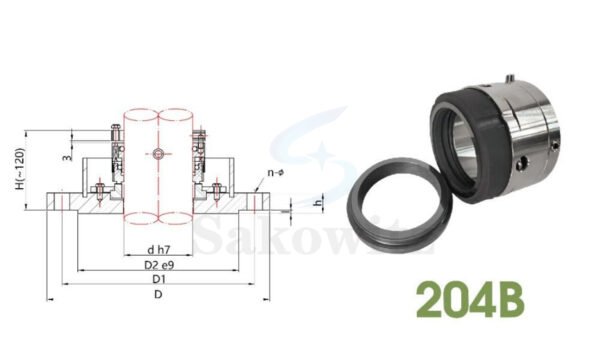

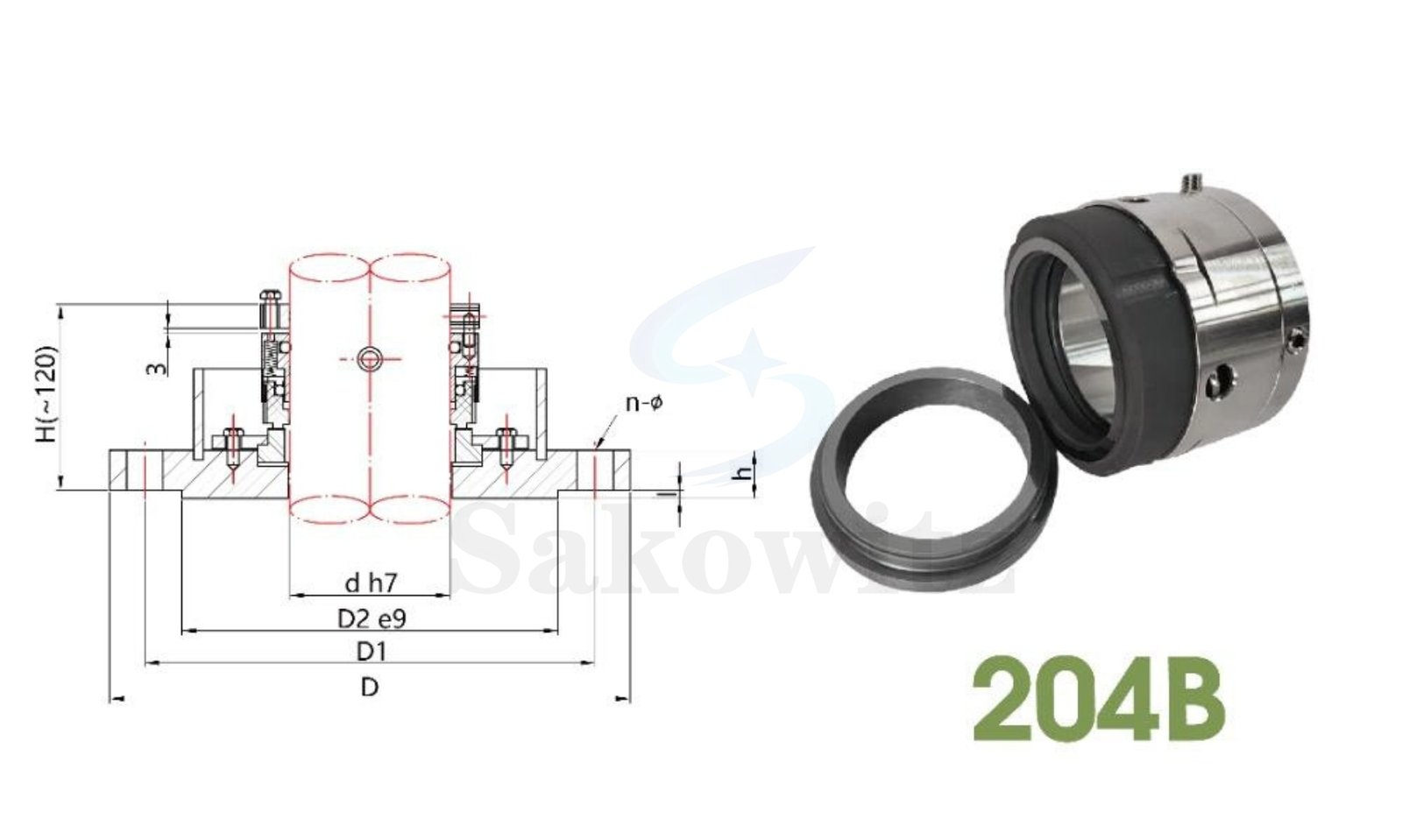

204B Mechanical Seal – For reaction kettles/mixers

Single end, multi springs, balanced, independent direction of rotation, the multi springs structure assures that the load on sealing faces are balanced.

Standards

HG-5-754-78

Scope of Application

Mainly used in top driven vertical type agitation equipent, as well as devices that do not have strict requirements for leakproofness

Inner Diameter

30 mm to 180 mm

Materials

Rotary Ring Face: Carbon/SiC/TC
Stationary Ring Face: SiC/TC
Elastomers: Viton/PTFE
Springs: SS304/SS316
Metal Parts: SS304/SS316

Operation Parameters

Pressure:≤ -0.1~0.3 MPa
Temperature: – 40~180℃
Linear Speed:≤ 2m/s

Mediums:

 oil, water,weak acid and alkali.
