Lip Seal vs Mechanical Seal: Selection Guide

In rotating equipment, lip seals and mechanical seals are both common shaft seals. However, they differ significantly. They vary in operating principles, sealing structures, and pressure-bearing capacity. They also differ in suitable media and maintenance costs.

Lip Seal vs. Mechanical Seal: Which One Is Better Suited for Your Equipment?

This article compares the pros and cons of lip seals and mechanical seals. We will look at operating principles, materials, pressure, rotational speed, temperature, and leakage control. We will also consider practical application scenarios, service life, and total operating costs. This will help you select the best sealing solution for your equipment’s operating conditions.

Lip Seal vs Mechanical Seal: Key Differences at a Glance

Both lip seals and mechanical seals are used to prevent fluid leakage along a rotating shaft, but they differ in their sealing mechanisms and the operating conditions for which they are suitable.

Comparison	Lip Seal	Mechanical Seal
Sealing Principle	Flexible lip contacts the rotating shaft.	Rotating and stationary faces form the seal.
Complexity	Simple structure with fewer parts.	More complex with seal faces, springs, and secondary seals.
Pressure Capability	Better suited to low-pressure service.	Suitable for a wider pressure range.
Speed Capability	Limited by lip material, lubrication, and friction heat.	Handles wider speed ranges with proper lubrication and cooling.
Temperature	Mainly limited by lip material and operating conditions.	Depends on face materials, secondary seals, and cooling.
Leakage Control	Good for retaining lubricants and excluding contaminants.	Better for applications requiring tighter process leakage control.
Initial Cost	Lower.	Higher.
Installation & Maintenance	Easier to replace; shaft condition is important.	Requires more precise installation and may need support systems.
Typical Applications	Gearboxes, bearing housings, lubrication systems.	Centrifugal pumps, chemical pumps, process pumps.

How can you quickly determine which one to choose?

Your equipment mainly contains lubricating oil or grease. It operates at low pressure. You prioritize simple design, easy installation, and low procurement costs. In this case, a lip seal is usually the preferred option.

Your equipment needs to seal pressurized liquids. It has strict leakage control requirements. Or it involves chemical media. Then, a mechanical seal is generally a better choice. Still, you need to confirm that the specific seal design and materials are suitable.

Tip: There is no absolute superiority or inferiority between the two. A standard lip seal is not suitable as a direct replacement for a mechanical seal in a pressurized pump, just as a mechanical seal may not necessarily be suitable for a simple lubricating oil sealing application.

How Lip Seals and Mechanical Seals Work

Lip seals rely on a flexible lip. It contacts the surface of the rotating shaft. Mechanical seals rely on two precision-machined sealing faces. They fit together to create the seal. Understanding this difference makes it easier to decide. You will know why they suit different types of equipment.

How Does a Lip Seal Work?

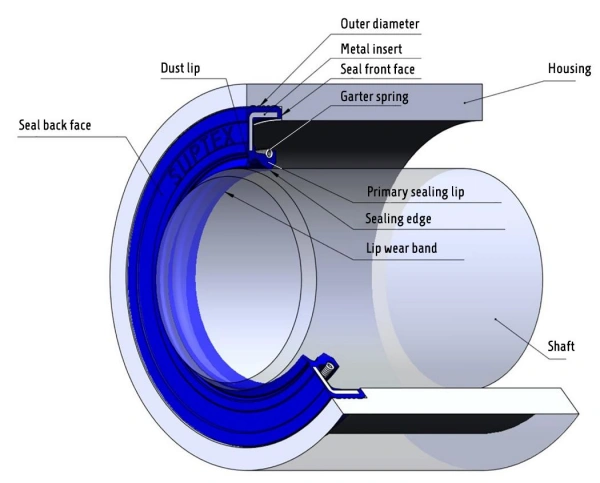

A lip seal consists of a metal frame, an elastic sealing lip, and a spring. The sealing lip is made of rubber or other elastic materials and fits snugly against the surface of the rotating shaft. Some designs also include a garter spring to help maintain contact force on the lip.

Tip: A tighter fit is not necessarily better for the lip. Excessive contact force may increase friction and temperature rise, accelerating material wear. Insufficient lubrication may also cause dry friction.

How Does a Mechanical Seal Work?

A mechanical seal has two sealing rings at its heart. One is the rotating ring. It rotates with the shaft. The other is the stationary ring. It is secured to the equipment housing. The flat surfaces facing each other on these two rings are called the seal faces.

During operation, spring force and fluid pressure work together. They create a closing force between the seal faces. This maintains an appropriate seal between them.

What Is the Main Difference in Their Sealing Mechanism?

Comparison	Lip Seal	Mechanical Seal
Sealing Location	Between the sealing lip and rotating shaft.	Between the rotating and stationary seal faces.
Sealing Force	Lip elasticity, interference fit, and spring force.	Spring force, process pressure, and fluid-film balance.
Lubrication	Thin lubricant film between lip and shaft.	Fluid film between the seal faces.
Main Wear Area	Sealing lip and shaft contact surface.	Rotating and stationary seal faces.
Typical Applications	Gearboxes, bearing housings, oil sealing.	Centrifugal pumps, chemical pumps, process equipment.

If your equipment primarily requires lubrication and operates at low pressure, the contact seal of a lip seal is simpler and more practical. If you need to seal process fluids being conveyed under pressure, the face seal design of a mechanical seal is more suitable.

Design, Materials, and Sealing Contact Compared

Lip seals and mechanical seals differ significantly in terms of structure, materials, and sealing contact methods. These differences affect the seals’ wear resistance, frictional heat generation, compatibility with various media, and operational reliability.

Design and Structural Components

The structure of a lip seal is relatively simple. A common design has three parts. There is a metal cage. There is an elastic sealing lip. And there is a garter spring. The metal cage provides structural support. The lip seals against the shaft surface. The spring helps maintain the right contact force.

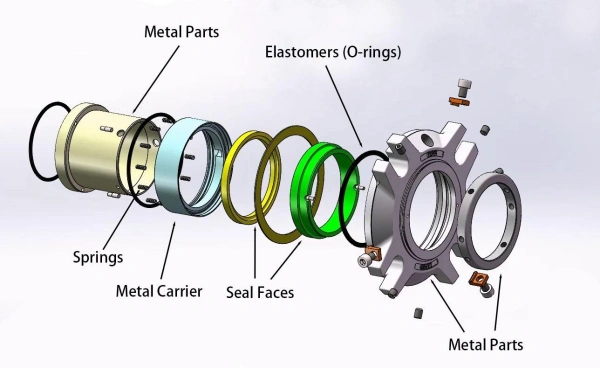

The structure of a mechanical seal is more complex. It includes a rotating ring. It includes a stationary ring. It has springs or bellows. It also uses auxiliary seals, such as O-rings.

Common Sealing Materials

When selecting sealing materials, one should not focus solely on hardness or price; it is also necessary to consider the chemical properties of the medium, temperature, lubrication conditions, and the risk of wear.

Material	Common Use	Key Features
NBR	Lip seals and some secondary seals.	Good for mineral oils and grease; limited temperature and chemical resistance.
FKM	Lip seals and mechanical seal secondary seals.	Good oil and heat resistance, but not compatible with all chemicals.
PTFE	Special lip seals and secondary seals.	Low friction and broad chemical resistance; requires careful installation.
Carbon Graphite	Mechanical seal faces.	Good self-lubricating properties; sensitive to abrasive particles.
Silicon Carbide (SiC)	Mechanical seal faces.	Hard, wear-resistant, and corrosion-resistant; brittle and sensitive to thermal shock.
Tungsten Carbide (TC)	Mechanical seal faces.	High wear resistance and mechanical strength; chemical resistance depends on grade and binder.

Sealing Contact and Wear

The most important difference between the two lies in where the friction occurs.
In a lip seal, friction occurs primarily between the lip and the shaft surface. When the shaft rotates continuously, insufficient lubrication, an excessively rough shaft surface, or improper lip contact force can lead to overheating and wear of the lip.

In a mechanical seal, friction and wear occur primarily between the two sealing faces. During normal operation, an extremely thin fluid film is required between the faces to reduce friction and dissipate heat.

Tip: Higher hardness does not necessarily mean better sealing performance. For mechanical seals, the material pairing of the two sealing faces must be considered, while for lip seals, both the lip material and the condition of the shaft surface must be taken into account.

How to Evaluate the Design and Materials

When making an actual selection, you should first confirm that the materials of the seal in contact with the medium are compatible, and then check the lubrication, surface condition, and assembly conditions at the sealing contact points.

1. Lip Seal

Carefully inspect the shaft surface for scratches, corrosion, or wear grooves, and verify that the shaft’s dimensions, surface roughness, and eccentricity meet the manufacturer’s specifications.

2. Mechanical Seal

In addition to the face materials, confirm that the materials of the O-rings, springs, and other wetted parts are suitable, and ensure that the precision sealing faces are not contaminated or damaged during installation.

Pressure, Speed, and Temperature Limits

When selecting lip seals and mechanical seals, pressure, speed, and temperature are three key parameters. They directly affect the friction-induced heat, material aging, and operational reliability of the seals.

Tip: Pressure, speed, and temperature cannot be evaluated entirely in isolation. Even if a seal meets the nominal upper limits for each of these three parameters individually, this does not mean it can operate continuously under all these extreme conditions.

Pressure Limits

Pressure and Differential Pressure: “Pressure” refers to the pressure conditions that the seal must withstand. When selecting a seal, you need to consider “Differential Pressure,” which is the pressure difference across both sides of the seal.
Operating Conditions for Lip Seals: Standard radial lip seals are primarily used in low-pressure or low-differential-pressure environments, such as gearboxes and bearing housings.
Effect of High Pressure on Lip Seals: Excessive pressure may cause the flexible lip to deform, increasing contact force with the shaft, which leads to friction-induced heat, accelerated wear, and may even cause the lip to lose its normal sealing capability.
Selection Considerations for Continuous Internal Pressure: If your equipment is subject to continuous internal pressure, standard lip seals cannot be used directly. You should check whether the manufacturer offers specialized pressure-resistant lip seals, along with their corresponding pressure, speed, and temperature limits.

Speed Limits

Rotational Speed and Linear Speed: Speed is expressed in RPM. However, for rotating shaft seals, shaft surface speed is equally important.
Effect of Rotational Speed on Lip Seals: The higher the rotational speed, the more significant the heat generated by friction between the lip and the shaft becomes. You need to check the lip material, shaft diameter, lubrication conditions, and the allowable linear speed specified by the manufacturer.
Speed Limits for Mechanical Seals: Mechanical seals are also subject to speed limits. During high-speed operation, lubrication of the sealing faces, temperature rise, vibration, and face stability can all affect performance. Even if the materials are wear-resistant, this does not mean speed limits can be ignored.

Temperature Limits

Comprehensive Definition of Temperature: “Temperature” refers not only to the temperature of the fluid inside the equipment but also to the additional heat generated by friction at the sealing contact points.
Temperature Tolerance of Lip Seals: Temperature tolerance is primarily influenced by the lip material, lubrication conditions, and contact temperature rise. For example, NBR is commonly used in environments with standard lubricants, while FKM can withstand higher temperatures; however, its chemical compatibility with specific media must still be verified.
Temperature Limitations for Mechanical Seals: Temperature limitations depend on the sealing face materials, auxiliary sealing materials such as O-rings, and lubrication and cooling conditions. Even when using high-temperature-resistant silicon carbide seal rings, auxiliary sealing materials may still act as limiting factors.

Leakage Control and Fluid Compatibility

Both lip seals and mechanical seals are used to control media leakage around rotating shafts, but they differ in their leak control capabilities and fluid compatibility.

Leakage Control

Lip Seal: Relies on a flexible lip in contact with a rotating shaft to prevent leakage; suitable for low-pressure, well-lubricated gearboxes and bearing housings. The risk of leakage increases with rising pressure, shaft wear, or lip aging; therefore, it is not suitable for high-pressure applications or process pumps with strict leakage requirements.
Mechanical Seal: Relies on the precise contact between rotating and stationary rings to control leakage; an extremely thin liquid film is required between the sealing faces to provide lubrication and cooling. This does not guarantee absolutely zero leakage; trace amounts of leakage may still occur during normal operation.
High-Risk Media: When transporting flammable, toxic, or highly polluting liquids, it is recommended to use a double-face mechanical seal, combined with a barrier fluid or other auxiliary sealing systems to enhance control performance.

Fluid Compatibility

Definition: Refers to the condition in which sealing materials do not undergo unacceptable swelling, softening, hardening, corrosion, or performance degradation when exposed to the contact medium over an extended period.
Lip Seal: Focuses primarily on the compatibility between the lip rubber material and the medium.
Mechanical Seal: Requires simultaneous inspection of the sealing faces, O-rings, springs, and other wetted parts.

Fluid Type	Lip Seal	Mechanical Seal
Lubricating Oil / Grease	Well suited; verify elastomer compatibility.	Suitable, but may be unnecessary for simple lubrication systems.
Water / Coolant	Requires a design suitable for water service.	Common in pumps; proper face lubrication is required.
Corrosive Chemicals	Requires chemical-resistant materials and design.	Can use corrosion-resistant faces and secondary seals.
Fluids with Solids	Particles can wear the lip and shaft surface.	Requires suitable materials and seal design.
Flammable / Toxic Fluids	Standard lip seals are not preferred as the primary process seal.	Use a mechanical seal system designed for leakage control.

Service Life, Failure Modes, and Maintenance

The service life of lip seals and mechanical seals depends not only on the seals themselves but is also influenced by lubrication conditions, the properties of the medium, operating temperature, the condition of the shaft, and the quality of installation.

Service Life Comparison

Lip Seal: Under conditions of adequate lubrication, a well-maintained shaft surface, and stable operating conditions, lip seals can operate for extended periods. However, as usage time increases, the lip may gradually wear down, and the rubber may age due to the effects of temperature and the medium.

Mechanical Seal: When the sealing faces are well-lubricated, the medium is clean, and the equipment operates stably, mechanical seals can also achieve a long service life.

Tip: It cannot be simply assumed that a mechanical seal will always have a longer service life than a lip seal. Without specific model numbers and operating conditions, it is impossible to provide a reliable, fixed service life estimate.

Common Failure Modes

A failure mode refers to the specific way in which a seal loses its normal function, such as wear, cracking, leakage, or damage to the sealing faces.

Common Failure	Lip Seal	Mechanical Seal
Wear	Lip and shaft surface wear.	Seal face scoring or abnormal wear.
Poor Lubrication	Heat, hardening, or lip damage.	Overheating, thermal cracking, or face wear.
Material Aging	Rubber hardening, cracking, or loss of elasticity.	O-ring aging and reduced secondary sealing.
Contamination	Particles damage the lip and shaft.	Particles damage faces or prevent proper closing.
Incorrect Installation	Rolled lip, scratches, or displaced spring.	Face damage, wrong dimensions, or uneven loading.
Shaft Vibration / Runout	Unstable contact and localized wear.	Unstable face contact and possible leakage.

Maintenance and Replacement

Lip Seal: Focus on inspecting lubrication and the condition of the shaft surface. Regularly check for oil leaks, abnormal lip temperatures, and any ingress of dust or moisture; when replacing the seal, verify the dimensions and material of the new lip seal and inspect the shaft surface for scratches or wear grooves.

Mechanical Seal: Focus on inspecting the operating conditions of the sealing faces. Pay attention to whether the pump exhibits abnormal leakage, vibration, or temperature rise, and verify that the seal flushing or cooling system is functioning properly; Seal Flush improves the environment within the seal chamber through the flow of an appropriate fluid, aiding in lubrication, heat dissipation, or reducing the impact of contaminants.

When Should You Replace a Seal?

Noticeable Increase in Leakage: A previously stable seal suddenly begins to experience continuous oil leakage, dripping, or an increase in the volume of leakage.
Abnormal Temperature: Abnormal heating in the sealing area may indicate increased friction or changes in lubrication conditions.
Vibration or Unusual Noises: If the equipment exhibits abnormal vibration or friction noises, inspect the condition of the bearings, shaft, and seal operation.
Seal Damage: Cracks in the lip, damage to the sealing face, aging of auxiliary seals, or other unacceptable damage are observed.

Initial Cost vs Total Operating Cost

When selecting lip seals and mechanical seals, the purchase price is only part of the total cost. You must also consider the costs of installation, replacement, maintenance, leakage, and equipment downtime. The most economical choice is not necessarily the seal with the lowest purchase price.

Initial Purchase and Installation Costs

Lip Seal: Simple in structure, with few parts; standard models are readily available, and installation and replacement are convenient. It offers a cost advantage in low-pressure lubrication environments such as standard gearboxes and bearing housings.

Mechanical Seal: Requires precision-machined end faces, auxiliary seals, and loading mechanisms, resulting in a higher purchase price; some also require a flush system or barrier fluid system, further increasing the initial investment.

Tip: If the equipment itself requires the use of a mechanical seal, do not switch to a lip seal simply to reduce procurement costs. It is only meaningful to compare costs if both options first meet the same operating conditions and safety requirements.

Maintenance, Leakage, and Downtime Costs

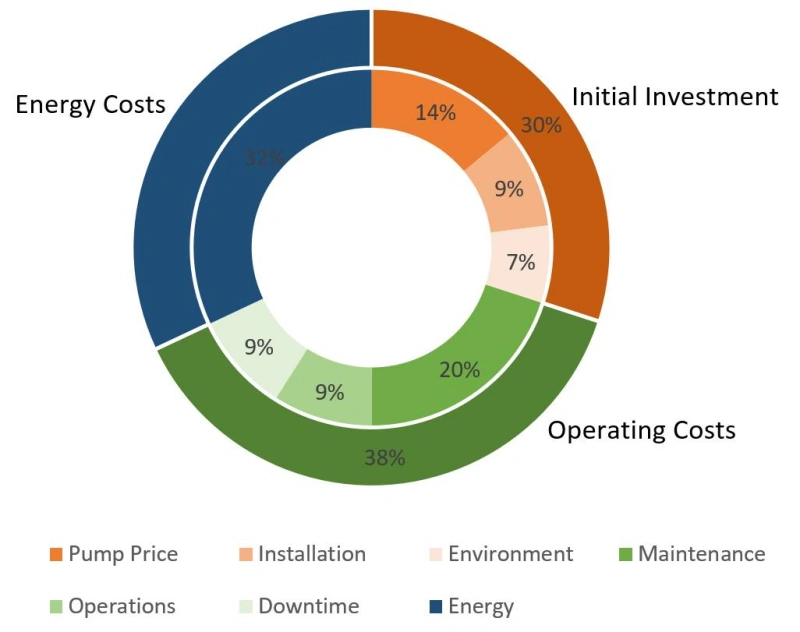

TCO (Total Cost of Ownership) = The total cost of equipment over its entire service life, not just the initial purchase price. In addition to procurement costs, three other cost categories must be considered:

Maintenance Cost: Replacing lip seals is simple, but additional repairs may be required if the shaft is worn; Mechanical seal repair and installation are highly technical, and some models also require maintenance of auxiliary systems.
Leakage Cost: Minor leaks of ordinary lubricating oil primarily require topping off and cleaning; leaks of expensive, corrosive, or hazardous media may result in more severe economic and safety consequences.
Downtime Cost: Losses resulting from production line downtime caused by seal failure may far exceed the cost of the seal itself.

How to Calculate Total Operating Cost

Simplified TCO Formula:Total Cost = Purchase Cost + Installation Cost + Maintenance and Replacement Cost + Leakage Losses + Downtime Losses + Auxiliary System Operating Costs

Depending on actual operating conditions, seal-related energy costs, environmental treatment costs, and other expenses may be included. For long-term projects, the time value of money must be considered.

Low-pressure lubrication applications: Lip seals typically meet requirements at a lower cost.
Continuously operating industrial pumps: Mechanical seals involve a higher initial investment but can reduce long-term costs by minimizing leakage and unplanned downtime.
Actual calculations should be based on the equipment’s historical failure records, actual repair costs, and projected operating time, rather than applying data from other equipment.

Best Applications for Lip Seals and Mechanical Seals

Lip seals are better suited for low-pressure lubrication systems, while mechanical seals are better suited for industrial pumps that require control of pressurized fluid leakage. However, the type of seal should not be determined solely by the equipment’s name. The key factors in selecting a seal include the seal location, the properties of the medium, the operating pressure, and the allowable leakage level.00

Lip Seal

Primary Function: Retains lubricating oil or grease and prevents external contaminants from entering.

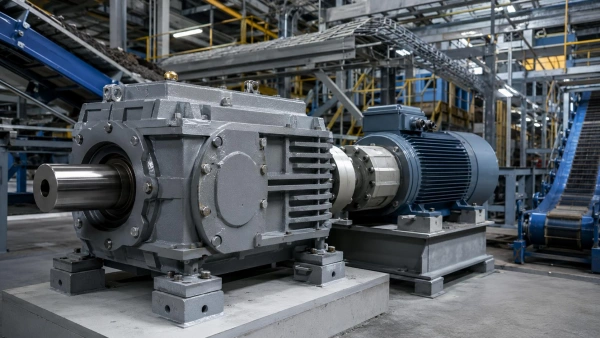

Gearboxes: Installed on input/output shafts to prevent lubricant leakage; cost-effective and practical under low-pressure conditions with smooth shaft surfaces and adequate lubrication.
Bearing Housings: Retains lubricant and blocks dust and moisture; specialized designs must be evaluated in cases of severe contamination, significant shaft eccentricity, or high-speed operation.
Low-Pressure Rotating Equipment: Suitable for some motors and gear reducers, but lip material, linear velocity, and pressure differential must be verified; cannot be assumed to be universally applicable.

Mechanical Seal

Core Purpose: Seals process fluids, withstands pressure, and strictly controls leakage.
Centrifugal Pumps: Prevents media leakage at the pump shaft; widely used in water supply pumps, circulation pumps, and industrial process pumps.
Chemical Processing Pumps: Chemical compatibility and leak control are particularly critical when handling corrosive, flammable, or hazardous liquids; for high-risk media, the seal configuration and auxiliary systems must be evaluated—standard single-face seals cannot simply be used.
Wastewater and Slurry Pumps: Slurries containing solid particles can cause wear on the sealing faces, so wear-resistant designs are typically required, and in some cases, flushing or barrier fluid systems are also necessary.

How to Choose the Right Seal for Your Equipment

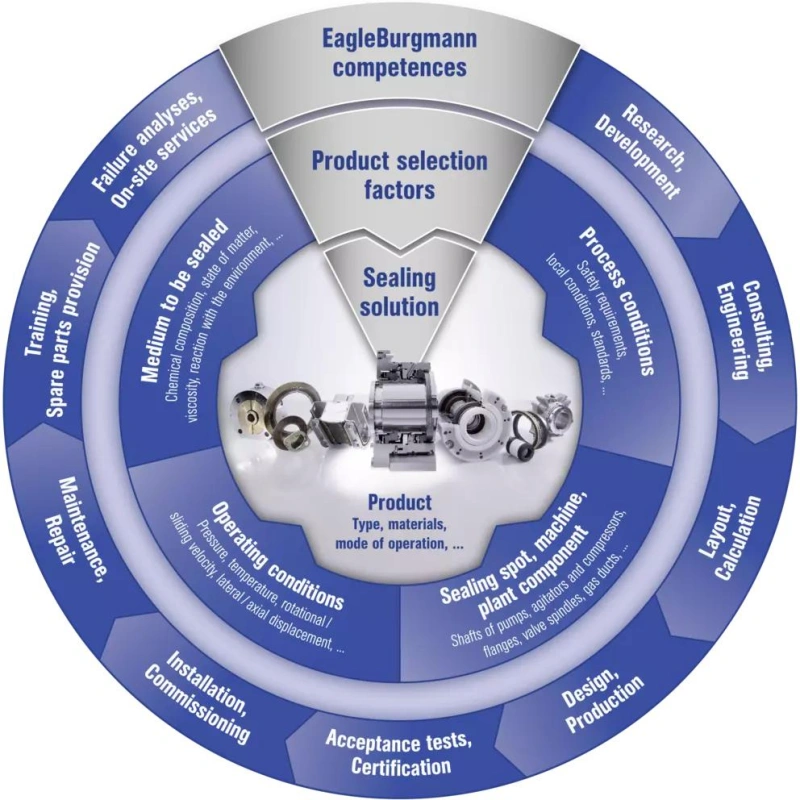

When selecting a model, one should not consider only price, size, or material; instead, a comprehensive evaluation must take into account the equipment type, sealing location, properties of the medium, operating pressure, rotational speed, temperature, and permissible leakage levels.

Step 1 — Identify the Equipment and Sealing Purpose

For gearboxes and bearing housings, the primary goal is to retain oil and prevent contamination; Lip Seals are the preferred choice. For pump shafts, the primary goal is to prevent process fluid leakage; Mechanical Seals are the preferred choice. Both types of seals may be used on the same piece of equipment; the determination is based on location, not the equipment name.

Step 2 — Identify the Medium and Operating Conditions

For Lip Seals, focus on material compatibility, linear velocity, and pressure differential; for Mechanical Seals, also consider lubricity, volatility, and solids content. Selection must take into account the medium, temperature, pressure, and velocity comprehensively; do not rely solely on individual limit values.

Step 3 — Evaluate Leakage and Safety Requirements

For standard lubricating oils and low-risk operating conditions, a lip seal is usually sufficient; for flammable, toxic, corrosive, or environmentally hazardous media, a specialized mechanical seal is required, with double-face seals and auxiliary systems used when necessary. A mechanical seal does not guarantee zero leakage; permissible leakage levels must be confirmed based on risk and regulations.

Step 4 — Check Installation and Maintenance Conditions

For lip seals, check the shaft surface, shaft diameter, bore diameter, and lip orientation; for mechanical seals, check the seal chamber, shaft sleeve, shaft runout, and installation space. When flushing, cooling, or isolation fluid systems are involved, confirm that the site meets the necessary installation and maintenance conditions.

Step 5 — Compare Cost and Long-Term Reliability

Lip seals have a low initial cost and are easy to replace. Mechanical seals have a high initial cost but may be more cost-effective in applications involving continuous operation, significant leakage losses, or high downtime costs. Do not modify the existing sealing configuration based solely on cost; before making any changes, verify that the shaft, seal chamber, and equipment design are compatible.

FAQs

Q1: Is an oil seal the same as a lip seal?

Not exactly. An “oil seal” typically refers to a seal used to prevent lubricant leakage, while a “lip seal” is a type of seal named for its lip-shaped structure. Common rotary shaft oil seals are a type of lip seal, but not all lip seals are used to seal fluids.

Q2: How much pressure can a lip seal handle?

Standard radial lip seals are typically suitable for operating conditions near atmospheric pressure or with small pressure differentials; some specialized high-pressure models can withstand higher pressures. Specific limits depend on the seal’s design, materials, rotational speed, and temperature, and should be determined by the manufacturer’s specifications.

Q3: Can a lip seal be used on a pump shaft?

Yes, but it depends on the sealing location and operating conditions. Lip seals are commonly used in pump bearing housings and can also be used for sealing the shafts of some low-pressure pumps. However, for industrial pumps that convey liquids under pressure, mechanical seals are generally more suitable.

Q4: Which seal is better for abrasive fluids?

For abrasive fluids containing sand, mineral slurry, and the like, specialized mechanical seals are typically the preferred choice. These seals can incorporate wear-resistant face materials and a flushing or isolation fluid system to reduce wear caused by particles. However, standard mechanical seals may also be damaged by particles.

Q5: Do lip seals require shaft lubrication?

Generally, yes. Adequate lubrication is required between the lip and the rotating shaft to reduce friction, heat generation, and wear. Standard rubber lip seals are not suitable for long-term dry running unless they feature a specialized design verified by the manufacturer.

Q6: Can a mechanical seal directly replace a lip seal?

Generally, they cannot be directly replaced. The two differ in structure, mounting dimensions, and sealing mechanisms. Before replacement, the shaft diameter, installation space, seal chamber, lubrication conditions, and auxiliary systems must be inspected; equipment modifications may be necessary.

Q7: What shaft finish is required for a lip seal?

The shaft surface should be smooth and free of scratches, corrosion, and visible wear grooves. For some common rubber radial shaft seals, manufacturers recommend a shaft surface roughness (Ra) of approximately 0.2–0.8 μm; however, specific requirements depend on the model, and attention must also be paid to the machining marks on the shaft surface.

Q8: Why does a new lip seal start leaking?

Common causes include incorrect installation orientation, scratches on the lip, shaft surface wear, dimensional mismatch, insufficient lubrication, or excessive internal pressure. Additionally, shaft eccentricity and damage to the mounting bore may also cause leakage. You should first inspect the installation and the condition of the shaft surface rather than immediately replacing the seal again.

Conclusion

There is no definitive “better” option between lip seals and mechanical seals; the key is whether it is suitable for your equipment and operating conditions.

When selecting a seal, don’t focus solely on the purchase price or a single parameter. You must consider the properties of the medium, pressure, rotational speed, temperature, lubrication conditions, shaft surface condition, allowable leakage rate, and maintenance conditions. You must also confirm that the seal material is compatible with the medium. Risks such as wear, contamination, vibration, and installation errors should also be assessed in advance.

If you are selecting the right lip seal or mechanical seal for your equipment, Sakowitz can help you evaluate the most suitable sealing solution based on the medium, pressure, temperature, rotational speed, and leakage requirements.
